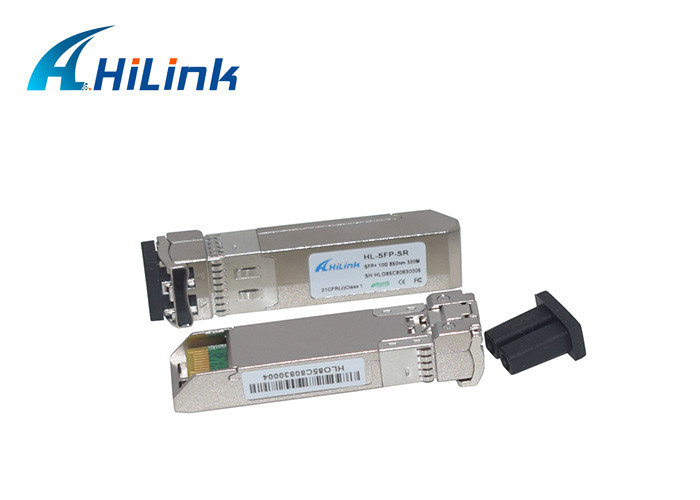

Hilink 10Gb/s SFP 10G SR serial optical interface compliant to 802.3ae 10GBASE-SR, with Electrical interface compliant to SFF-8431 specifications for enhanced 8.5 and 10 Gigabit small form factor pluggable module “SFP+” 850nm VCSEL transmitter, PIN photo-detector
Product Features:
♦ Optical interface compliant to IEEE 802.3ae
♦ Electrical interface compliant to SFF-8431
♦ Hot-Pluggable
♦ 850nm VCSEL transmitter,PIN photo-detector
♦ Low power consumption, below 1W
♦ Applicable for 300m MMF connection
♦ All-metal housing for superior EMI performance
♦ Advanced firmware allow customer system encryption information to be stored in transceiver
♦ Cost effective SFP+ solution, enables higher port densities and greater bandwidth
Application
♦ 10GBASE-SR at 10.3125Gbps
♦ 10GBASE-SW at 9.953Gbps
♦ Other optical links
Quick Detail Specification:
| Part Nuber | HL-SFP-10G-SR |
| Datarate | 8G~10Gb/s |
| Wavelenght | 850nm |
| Distance | 300meter |
| Transmitter | VCSEL |
| Receiver | PIN |
| DDM/DOM | Yes |
| Media | MMF |
| Operating Temperature | 0°C to +75°C |
| Available Compatible Brand | Cisco,Alcatel-Lucent,HP CIENA,Juniper,Huawei etc...
|
Following is the series of 10G SFP
| CISCO P/N | Description |
| SFP-10G-SR | Cisco 10GBASE-SR SFP+ Module for MMF |
| SFP-10G-SR-X | Cisco 10GBASE-SR SFP+ Module for MMF, Extended temperature range |
| SFP-10G-LRM | Cisco 10GBASE-LRM SFP+ Module for MMF and SMF |
| SFP-10G-LR | Cisco 10GBASE-LR SFP+ Module for SMF |
| SFP-10G-LR-X | Cisco multirate 10GBASE-LR, 10GBASE-LW SMF, extended temperature range |
| SFP-10G-ER | Cisco 10GBASE-ER SFP+ Module for SMF |
| SFP-10G-ZR | Cisco 10GBASE-ZR SFP+ Module for SMF |
| SFP-10G-BXD-I | Cisco 10GBASE-BX10-D Bidirectional for 10km |
| SFP-10G-BXU-I | Cisco 10GBASE-BX10-U Bidirectional for 10km |
| SFP-10G-BX40D-I | Cisco 10GBASE-BX40-D Bidirectional for 40km |
| SFP-10G-BX40U-I | Cisco 10GBASE-BX40-U Bidirectional for 40km |
