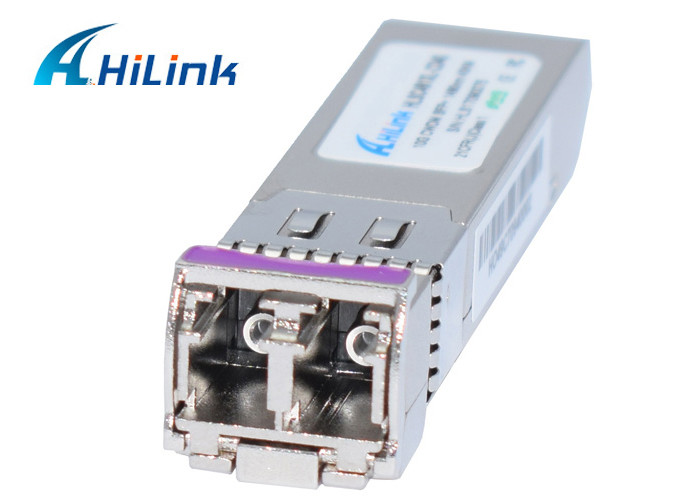

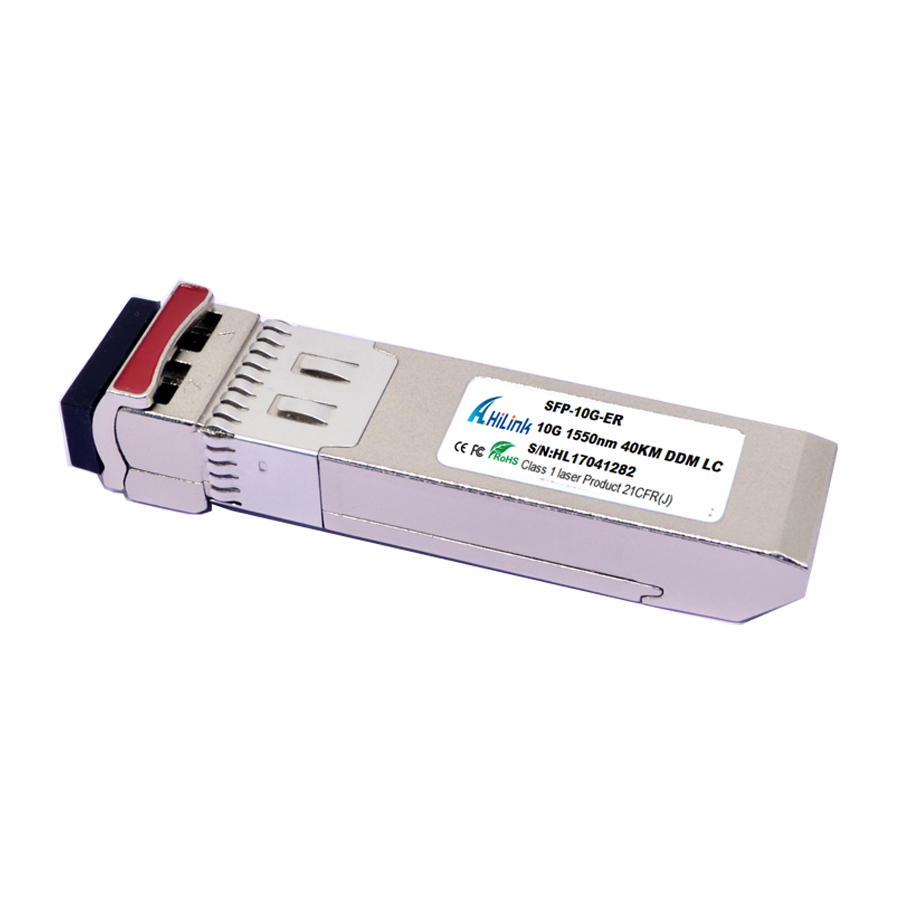

Mikrotik 10G 1550nm 40Km DDM SFP+ Transceiver Module ER Duplex LC Connector

  • 1
  • 2

Brand Name : HILINK

Model Number : HL-SFP-10G-ER

Certification : CE FCC Rohs

Place of Origin : Guangdong, China

MOQ : 1pcs

Price : Get latest price

Payment Terms : T/T, Western Union, MoneyGram,Paypal

Supply Ability : 5000pcs/Month

Delivery Time : 2-5working days

Packaging Details : Static bag, Plastic Flat, Retail box, by requires

Product name : 10G SFP+ ER

Data Rate : 10G

Wavelength : 1550nm

Distance : 40Km

DDM : Yes

Connector type : LC

Warranty : 3 years

Compatility : Cisco,Huawei,Juniper,HP etc.

Contact Now

Mikrotik 10G 1550nm 40Km DDM SFP+ Transceiver Module ER Duplex LC Connector

Feature

● Duplex LC Connector

● Support hot-pluggable

● Metal with lower EMI

● Excellent ESD protection

● 1550nm EML Transmitter and PIN Receiver

● Typical Center Wavelength:1550nm

● Max link length up to 40Km on SMF

● RoHS Compliant and Lead-Free

● Digital diagnostic compatible with SFF-8472

● Case Operation Temperature:-5℃~+70℃

● Single 3.3V power supply and Low power dissipation


Application

● 10GBASE-ER/EW 10G Etherne

● Other optical link

Description

SFP+ ER transceiver is specifically designed for the high performance integrated duplex data transmission over single mode optical fiber. This transceiver module is compliant with

Enhanced Small Form Factor Pluggable Module SFP+ Multisource Agreement (SFF-8431).This transceiver type is specifically optimized for transport of serial data at 10.3125Gbps.


SFP+ Transceivers

Cisco Part Number Application Data Rate Wavelength Distance

Connector

Type

SFP-10G-SR SFP+ 10GBASE-SR 10G 850nm 300m LC
SFP-10G-LR SFP+ 10GBASE-LR 10G 1310nm 10km LC
SFP-10G-LRM SFP+ 10GBASE-LRM 10G 1310nm 220m LC
SFP-10G-ER SFP+ 10GBASE-ER 10G 1550nm 40km LC
SFP-10G-ZR SFP+ 10GBASE-ER 10G 1550nm 80km LC

Product Details

Item No. SFP-10G-ER Vendor Name Hilink
Form Type SFP+ Max Data Rate 10Gbps
Wavelength 1550nm Max Cable Distance 40KM
Interface LC duplex Optical Components EML1550nm
Cable Type SMF DOM Support Yes
TX Power -3~3dBm Receiver Sensitivity < -15.8dBm
Commercial Temperature Range 0 to 70°C (32 to 158°F) HTS-Harmonized Code 8517706000

Mikrotik 10G 1550nm 40Km DDM SFP+ Transceiver Module ER Duplex LC ConnectorMikrotik 10G 1550nm 40Km DDM SFP+ Transceiver Module ER Duplex LC Connector
